Water Reuse
Polishing trains that put treated effluent back into non-potable service.
Products & Solutions
Membrane Bioreactor (MBR)
Ultrafiltration combined with the activated sludge process — the most advanced technology available in the market.
Overview
Ultrafiltration in place of a settling tank
Membrane Bioreactor — MBR — is the combination of ultrafiltration (UF) and the activated sludge process. Instead of relying on a secondary clarifier to separate biomass from treated water, an ultrafiltration membrane does the separation directly inside or immediately after the bioreactor.
Because separation no longer depends on how well the sludge settles, the process can be operated at much higher biomass concentrations, in a smaller tank, with an absolute barrier to suspended solids and bacteria in the permeate.
Ion Agua has helped various customers from Municipal to Industrial to Food and Beverage for treating and recycling the water for non-potable purposes. MBR is an excellent option for retrofit and refurbishment projects to improve and upgrade the current WWTP installations.
- The combination of ultrafiltration and the activated sludge process
- The advanced technology available in the market
- Used to treat and recycle water for non-potable purposes
- An excellent option for retrofit and refurbishment projects
Applications
Where MBR is the right selection
- Treating and recycling water — for non-potable purposes — the reason customers select MBR
- Retrofit and refurbishment — an excellent option for improving and upgrading current WWTP installations
- Municipal schemes — one of the sectors Ion Agua has delivered MBR into
- Industrial effluent — where the treated stream is being returned to service
- Food and beverage effluent — reuse for washing and clean-in-place duty
At a glance
What Ion Agua supplies
Everything below is drawn from Ion Agua's published product information.
| Process | Combination of ultrafiltration (UF) and the activated sludge process |
|---|---|
| Positioning | The advanced technology available in the market |
| Primary application | Treating and recycling water for non-potable purposes |
| Retrofit suitability | An excellent option for retrofit and refurbishment of existing WWTP installations |
| Sectors served | Municipal, Industrial, and Food and Beverage |
Ion Agua sizes and fabricates every system against your feed water analysis and duty point. Detailed specifications are issued with the proposal.
Industries Served
Where this system is deployed
Municipal & Residential
Sewage treatment works, community schemes and reuse for irrigation and flushing.
Food & Beverage
Bottling, brewery, dairy and juice processing effluent, plus CIP recovery.
Gallery

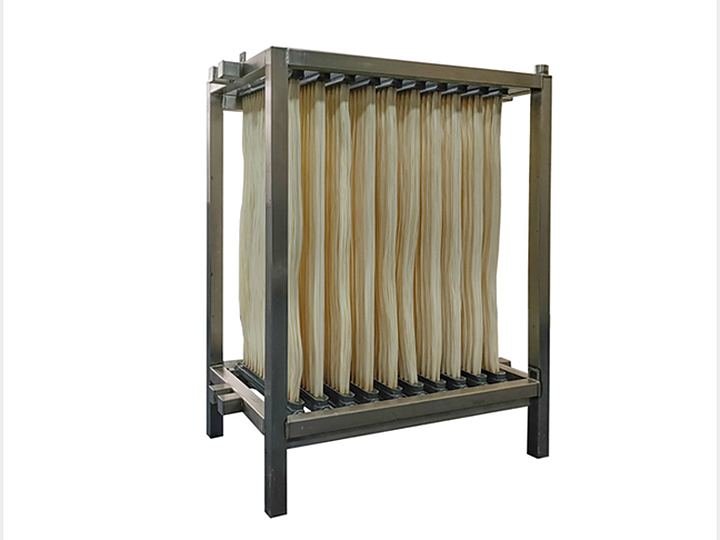

MBR in service
Documentation
Request technical documentation
Documentation is issued on request, against the duty point and feed water analysis for your project.
Related
Related solutions

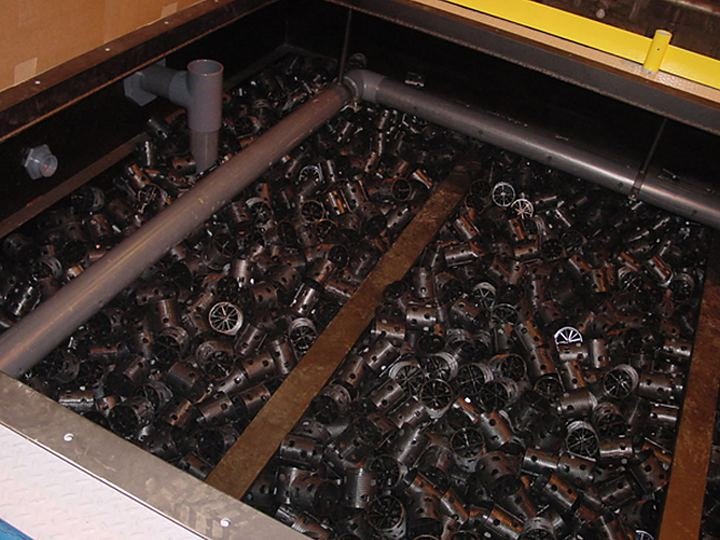

Moving Bed Biofilm Reactor (MBBR)
The simpler biological route where reuse-grade permeate is not required.
View solution
DAF — Dissolved Air Flotation
Protects membranes by removing FOG ahead of the bioreactor.
View solution
Contact Us
Let’s solve your water challenge
Send us the stream and the target. Our engineers will come back with a process route, an indicative footprint and a budget.
