DAF — Dissolved Air Flotation
Ideal for removing fats, oil and grease from industrial waste streams, and scalable to very high flow rates.
Overview
Flotation that lifts what settling leaves behind
Dissolved air flotation introduces microscopic air bubbles into the waste stream under pressure. As the bubbles rise they attach to fats, oils, greases and low-density suspended solids, floating them to the surface where a skimmer removes them as a concentrated float layer.
It is the right answer wherever contaminants are lighter than water, or close enough to neutral buoyancy that gravity settling alone will not separate them in a sensible footprint. Ion Agua offers corrosion-resistant designs, which makes the technology equally suited to removing iron from high salt content brines.
We supply semi-automated and fully-automated pump technology systems, in capacities ranging from 100 to 5,000 gallons per minute.
- Removes fats, oil and grease from industrial waste streams
- Can be scaled to very high flow rates
- Corrosion-resistant designs, ideal for iron removal from high salt content brines
- Semi- or fully-automated pump technology systems
Applications
Where DAF earns its place
- Industrial waste streams — the core duty — fats, oil and grease removed from industrial effluent
- High salt content brines — corrosion-resistant designs for iron removal from brines
- Slaughterhouse effluent — one of the industrial sectors Ion Agua serves, with high FOG loads
- Dairy, brewery and beverage effluent — food and beverage streams where fats and greases must come out first
- Pre-treatment duty — conditioning the stream ahead of the biological stage
At a glance
What Ion Agua supplies
Everything below is drawn from Ion Agua's published product information.
| Primary duty | Removal of fats, oil and grease (FOG) from industrial waste streams |
|---|---|
| Secondary duty | Iron removal from high salt content brines |
| Hydraulic capacity | 100 to 5,000 gallons per minute |
| Scalability | Can be scaled to very high flow rates |
| Automation | Semi-automated or fully-automated pump technology systems |
| Construction | Corrosion-resistant designs available |
Ion Agua sizes and fabricates every system against your feed water analysis and duty point. Detailed specifications are issued with the proposal.
Industries Served
Where this system is deployed
Food & Beverage
Bottling, brewery, dairy and juice processing effluent, plus CIP recovery.
Municipal & Residential
Sewage treatment works, community schemes and reuse for irrigation and flushing.

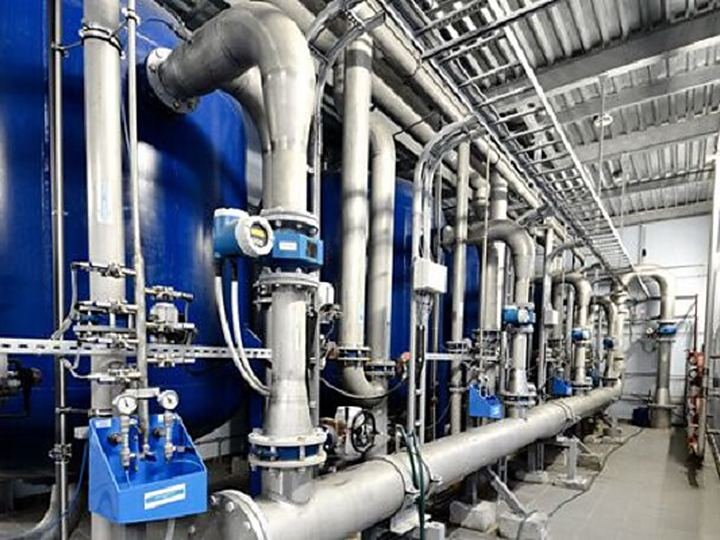

Gallery
DAF in service
Documentation
Request technical documentation
Documentation is issued on request, against the duty point and feed water analysis for your project.
Related
Often specified alongside DAF
Clarifier Systems
Tube settlers and lamella clarifiers for streams where gravity settling is the better route.
View solution
Activated Sludge Systems
Secondary biological treatment downstream of DAF pre-treatment.
View solution
Filtration Systems
Media filtration to polish the clarified stream before discharge or reuse.
View solution
Contact Us
Let’s solve your water challenge
Send us the stream and the target. Our engineers will come back with a process route, an indicative footprint and a budget.
